Core Technology and Features
Programmable Structure Grating (PSLM) Technology
Completely in house developed and manufactured Programmable Structural Grating (PSLM) Technology forms full-spectrum structural gratings, which achieves software modulation and control of structural gratings compared to traditional fixed Glass Moire gratings. The detection capabilities and applications range of the equipment have been greatly improved and enhanced.
AI Intelligence coupled with Seamless Solution Technology
3DAOI adopts innovative AI intelligence with Seamless Solution Technology, reaching a level that cannot be distinguished by the naked eye. The problems encountered at the joint inspection between FOV and FOV in traditional AOI, such as uneven surfaces, uneven color, and image distortion, have been perfectly resolved. Improve the positioning accuracy of the detection and reduces program debugging fine tuning time.
Super RGB Pro 2D Light
3D AOI adopted the independently developed enhanced multi angle, multi region, and tunable RGB + W+ coaxial 2D light source design; Suitable for detecting components, solder joints, and characters in various situations.

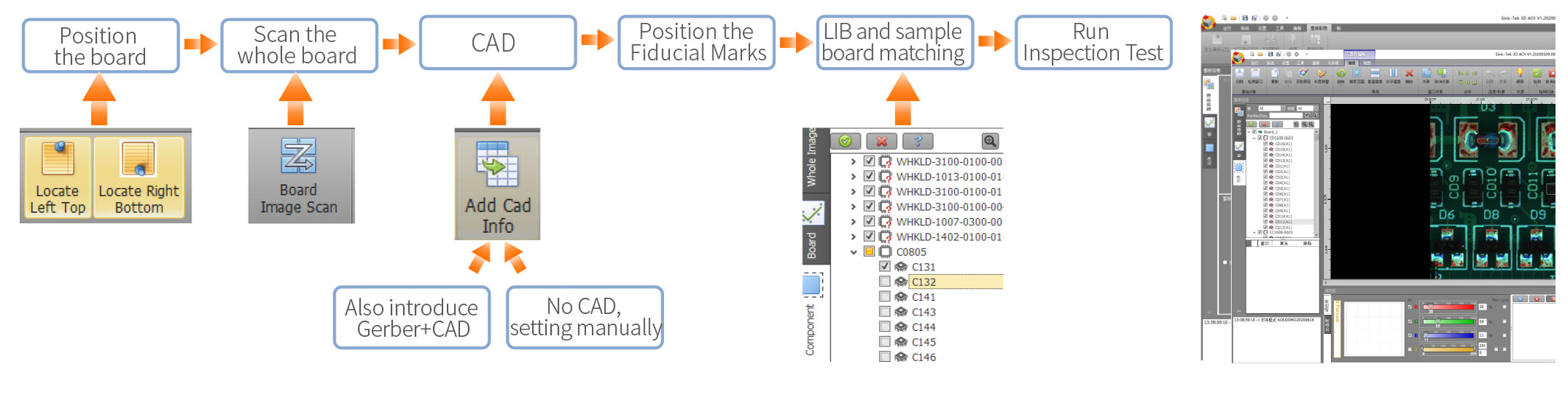

Intelligent program editing: Simple and Fast
3DAOI uses an intelligent program editing method and a template type parameter setting method to facilitate rapid programming and debugging.

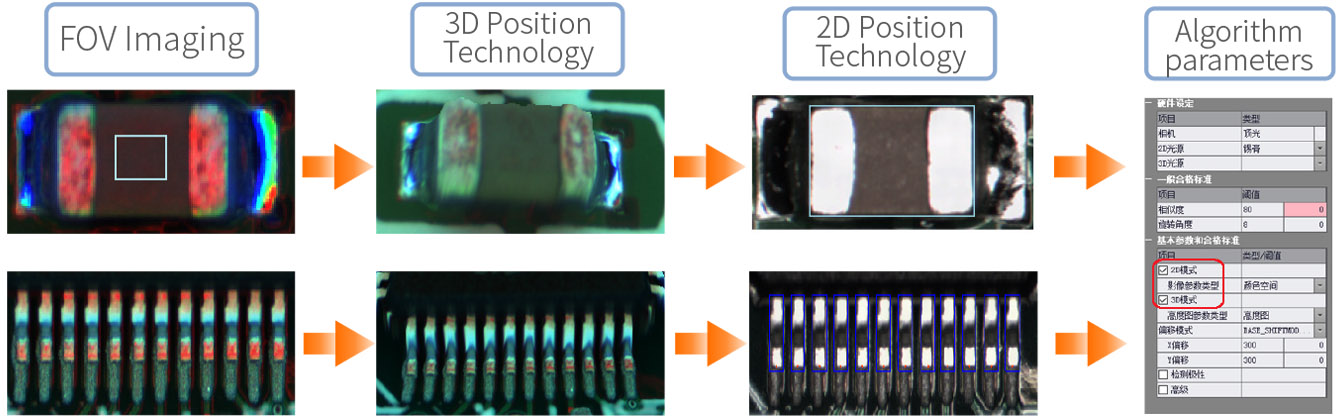

3D+2D Body Positioning Technology
3DAOI uses 3D body positioning technology, assisted by 2D positioning technology, to ensure accurate body and pin positioning of components such as Chip and IC, and accurate body positioning of dark colored special components etc.

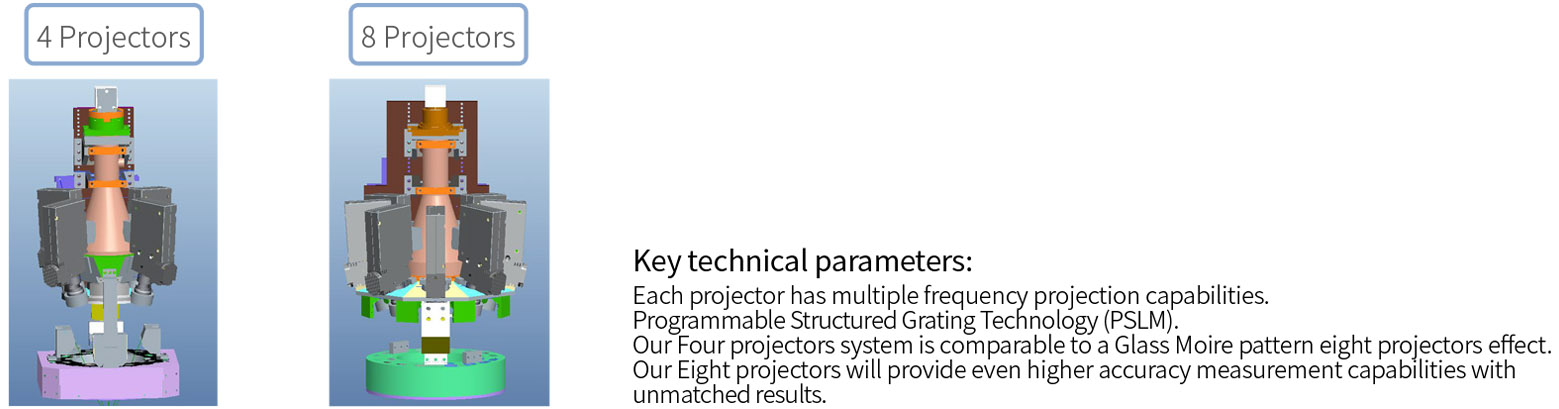

CXP Camera Solution with High count,4/8 Projectors Detection Solution
3DAOI camera makes use of Coa X Press (CXP-6) standard, with a 1200W resolution and a rate of 188 s, to ensure industry leading inspection speed. 3DAOI uses optional 4 projectors+8 projectors combined with PSLM multi frequency projection capabilities to achieve the best detection solution, covering all SMT applications.
SPC Analysis Software and Closed-loop Control Settings
3DAOI has complete SPC analysis software and closed-loop control, ensuring that the inspection data of 3DAOI could be completely recorded and analyzed, and with highly accurate traceable results. 3DAOI three-point integration function enables the resolution of specific measurement value of a single PAD using Sinic-Tek's 3D SPI and 3D AOI.
The Whole SMT Line Layout

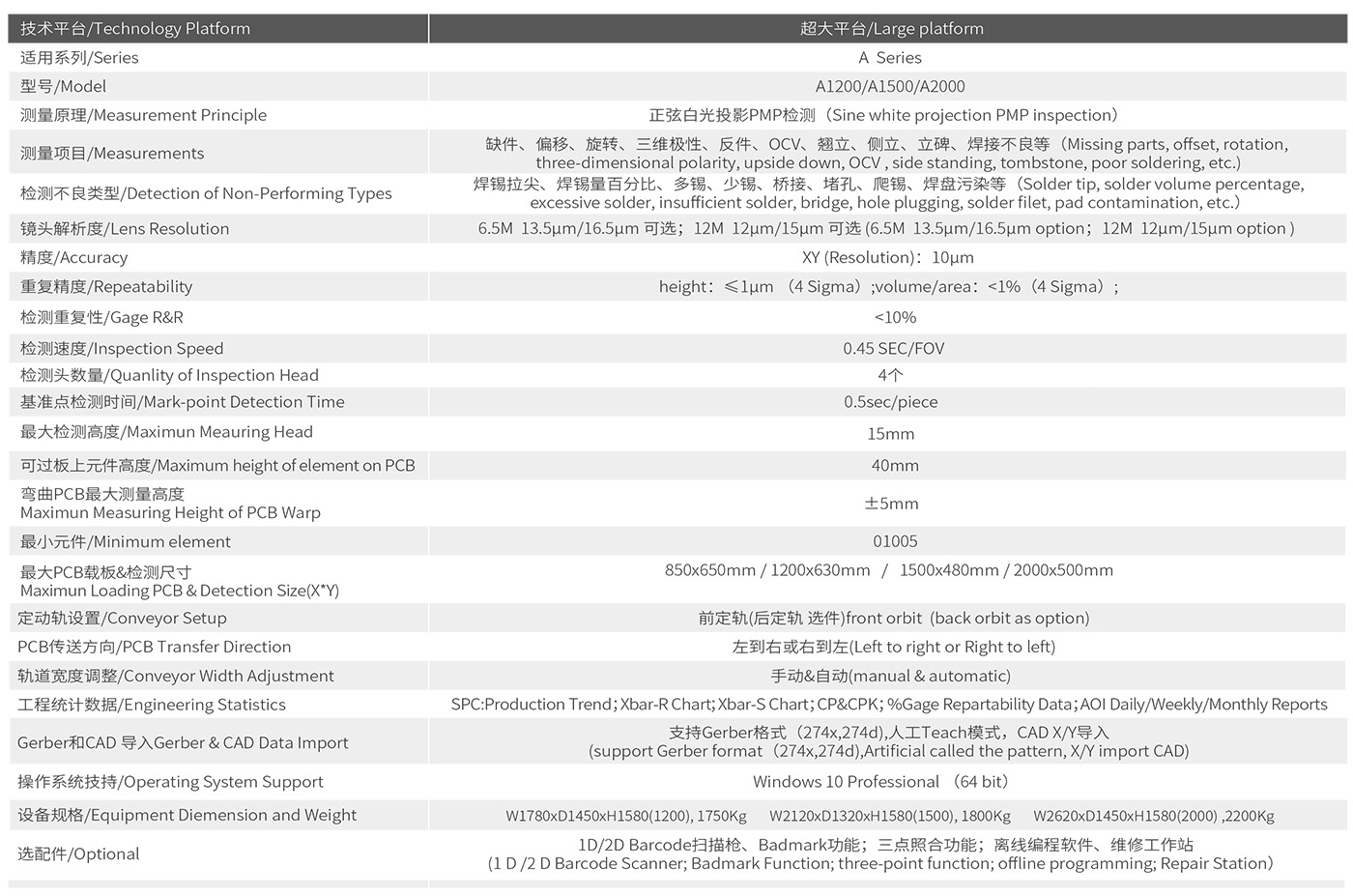

Technical Specifications
